The Pico ADC-212 and ADC-216 virtual instruments represent a quantum improvement in digital storage oscilloscope technology. While most digital scopes offer only 8 bit resolution (0.4%), these new virtual instruments offer impressive resolutions of 16 bits (250 and 15 parts per million).

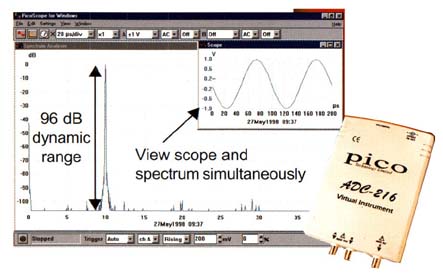

When used as a spectrum analyzer, the ADC-212 has a useable dynamic range of over 80 dB, whilst the ADC-216 offers over 90 dB.
With an ADC-212 or 216 and the supplied PicoScope software, your PC becomes a high precision test instrument (oscilloscope, spectrum analyzer and multimeter). Additionally, when used with the supplied PicoLog software, your PC becomes an advanced data logger and chart recorder. For users wishing to develop their own software, there are software drivers for DOS, Windows 3.1, 95/98 and NT and examples for Labview, Excel Visual Basic, Delphi and C.
With its 32k buffer, the ADC-212/216 can collect large quantities of accurate data at high speed. The large memory means that oversampling can be used to reduce the effects of alaising.
Three models of the ADC-212 exist with sampling rates of 20 Mhz, 50 Mhz and 100 Mhz. (Models ADC-212, ADC-212/50 and ADC-212/100)
|
| |
Scope timebase
Spectrum ranges
ADC-212 - Replaced by the 4224(PP478)
ADC-216 - Replaced by the 4262(PP799)
Max sample rate
ADC-212
ADC-216
Analog bandwidth
ADC-212
ADC-216
Buffer size
Voltage ranges
Resolution
ADC-212
ADC-216
Channels
Accuracy
PC connection
Power Supply
EMC
Warranty
|
20 µs/div to 50 s/div
0 to 625 kHz
0 to 166 kHz
1250 ksps (single channel)
625 ksps (dual channel)
333 ksps (single channel)
166 ksps (dual channel)
625 kHz
166 kHz
32 k
± 10 mV to ± 20 V in 11 ranges
12 bit
16 bit
2 BNC, Mega Ohm AC/DC
1BNC external trigger
± 1%
D25 to PC parallel port (cable supplied)
500 mA @ 12 V (mains adapter supplied)
All products comply with current CE standards
1 Year Parts and Labor
|
12 or 16 bit resolution
