Data Acquisition  MSR85 - Logistics Temp Logger [low temps]*NEW*
Reusable PDF Ultra-Low Dry Ice Data Logger for Temperature Monitoring of Cold Chains and Shipments down to -85 °C
|
 |
 |
|
Download Data Sheet. - Web Page under construction. Check back soon.
English Data Sheet for Download

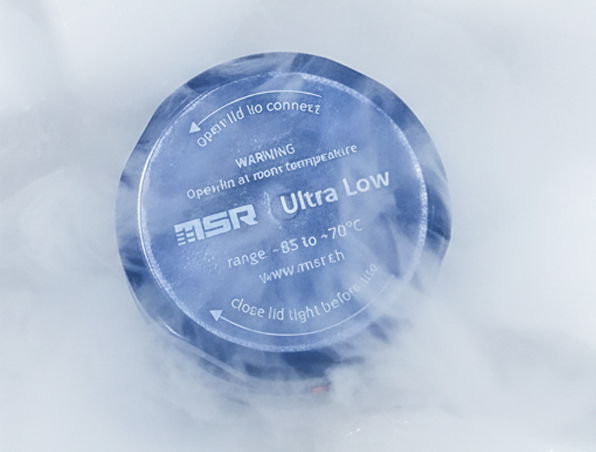

MSR85: Reusable Ultra-Low Temperature Data Logger for Dry Ice Monitoring, Down to -85 °C
The MSR85 data logger is engineered for precise temperature monitoring in environments where products are transported or stored using dry ice. This robust solution is ideal for the safe transport of temperature-sensitive goods, including pharmaceuticals, vaccines, biological samples, tissues, and enzymes that require stringent cold chain conditions down to –85 °C.
Key Features: Reusable, Reliable, and Secure Reporting
Designed with sustainability in mind, the MSR85 is equipped with a replaceable battery and an extended operating life, ensuring it remains a cost-effective solution for cold chain monitoring. The setup process is intuitive; users can easily configure essential parameters such as alarm thresholds, measurement intervals, and time zones using the included Configuration Tool. Recording can be initiated effortlessly with the press of a single button.
Upon completion of transport, recipients can quickly ascertain whether any temperature thresholds were breached via the LED indicator. Once the recording session is concluded by pressing the button, the logger can be connected to a PC via USB. The MSR85 then automatically generates tamper-proof PDF and CSV reports containing all pertinent data for comprehensive review and compliance documentation.
|
| |
Technical information on the temperature sensor
| Sensor |
Working Range |
Acccuracy |
Measurement/Storage Rate |
| PT1000 temperature sensor (housing-mounted, no cable) |
-85… 70 °C (-121… 158 °F) |
better than 0.7 °C (-85…-30 °C), 0.5 °C (-30… 70 °C) |
1 min, 5 min, 8 min, 10 min, 15 min, 30 min, 1 h, 2 h
|
General technical data for data logger MSR85
| Type: |
Reusable temperature data logger for ultra-low temperatures. |
| Temperature range: |
-85 to 70 °C (-121 to 158 °F) |
| Resolution: |
0.1 °C |
| Memory capacity: |
32,000 measured values (32K – non-volatile) |
| Logging interval: |
Selectable options: 1 min, 5 min, 8 min, 10 min, 15 min, 30 min, 1 h, 2 h. |
| Start delay: |
1 min. to 45 days |
| Alarm limits: |
Min./max. values |
| LED: |
6 LED indicators: 2 LEDs for recording/stop status; 2 LEDs for high/low alarm status; and 2 LEDs for battery status (full, ¾, ½ or less). |
| Push buttons: |
Two secured push buttons to start and stop recording. |
| Housing: |
Robust, temperature-resistant housing (IP67) made of polycarbonate/ABS, food grade. |
| Dimensions: |
Ø 50 mm x H 45 mm, approx. 43 g |
| Battery type: |
Replaceable 3.6 V ½ AA battery. Recommendation: Type EVE ER14250 |
| Battery life: |
Approx. 100 days at a logging interval of 10 minutes – depending on the sampling rate as well as operating and storage conditions. |
| PC interface: |
USB Type-C |
| Data report: |
Automatic creation of Adobe PDF and CSV reports with graphs, measurement tables, and summaries of statistical data (tamper-proof). |
| Configuration tool: |
The Configuration Tool is provided via a link. |
| QA certification: |
Calibration certificate – traceable nationally and internationally. Each MSR85 data logger is factory-calibrated at five temperature points. A copy of the certificate is additionally stored on the data logger. |
| System requirements: |
Windows 7 or higher; Adobe Reader 9.0 or higher |
| Transport regulations: |
Safe for air, land, and sea transport; no marking required according to IATA Dangerous Goods Regulations (DGR), 58th Edition 2017; UN3019, Packing Instruction 970 Section II – exempted lithium metal cells and batteries. U.S. Department of Transportation, Lithium Battery Hazardous Material Regulations; 49 CFR Parts 171–180; 2016 International Maritime Dangerous Goods (IMDG), Packing Instruction 903 |
Product features of the dry ice data logger - MSR85
-
Reusable PDF data logger for temperature monitoring of cold chains and transports in the dry ice range
-
Housing-mounted PT1000 temperature sensor -85 °C… 70 °C
-
Storage capacity of up to 32 000 measured values
-
Bright LEDs for easy alarm identification
-
Replaceable 3.6 V ½ AA battery
-
Integrated USB-C port – simple PC connection
-
Automatic PDF & CSV reports with measured values and graphs
-
Rugged, temperature-resistant housing (IP67)
-
Configuration Tool provided via an online link
-
Incl. 5-point calibration certificate
-
Easy handling, reliable evaluation
-
Measurement data cannot be manipulated
-
EN 12830 certified for food and pharmaceutical logistics
-
Complies with FDA 21 CFR Part 11 requirements
