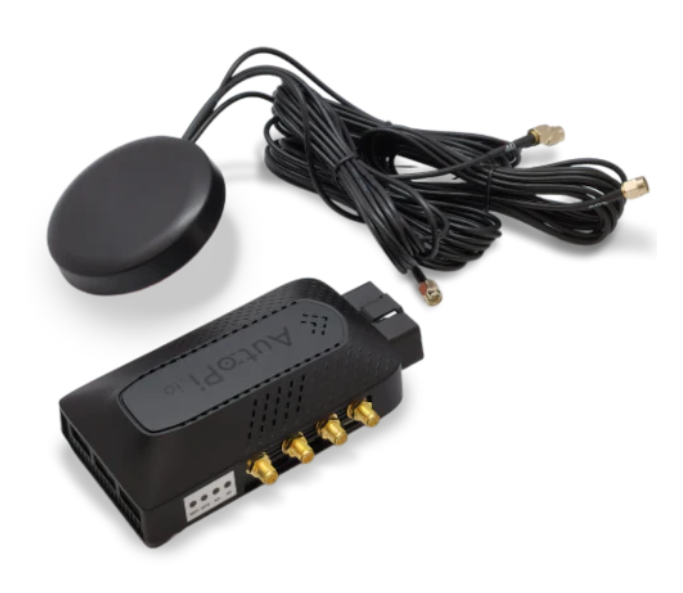

The device comes with 32Gb storage, which is extendable with a flashdrive. With a built-in 4G/LTE modem, the device can securely push data to your cloud solution.
The device is built on the Raspberry Pi Computer Module
Software is 100% free and included, no subscriptions. Use AutoPi Cloud for device management, device diagnostics and device Over-The-Air configuration and updates.
- Full CAN bus logging of dual CAN/CAN-FD buses, with support for additional CAN buses through external interfaces
- 32GB embedded storage, with support for external USB drives for additional storage
- Continuous upload of raw or decoded CAN data to external storage like AWS S3
- Support of mixed/simultaneous 11 bit and 29 bit frame IDs. Support sending CAN queries (PIDs, PGNs)
- Onboard CAN decoding using DBC, Python etc. - no server-side decoding needed
- Remote live debugging and interaction with CAN buses through secure VPN (Tailscale)
- Open source system based on standard Linux, SocketCAN and Python.
- Support for hardware encryption/data signing using on-board secure element.
- Plug-and-play, no configuration required before installation in any 12V or 24V vehicle or machinery
For large volume discounts, contact sales[at]interworldna.com for more details
Pro-specifications in a compact device
|
| Processor: |
Broadcom BCM2711 Quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz (RPi CM4) |
| Memory: |
4GB LPDDR2 SDRAM |
| Storage: |
32GB on board eMMC (expandable with USB flash drive) |
| Modem: |
Integrated 4G/LTE Cat 4 connection (3G/EDGE fallback) (150Mbit DL / 50Mbit UL) (Global connectivity in a single device) |
| Secure Element: |
Sign and encrypt data |
| Bluetooth: |
v5.0/BLE |
| GPS/GNSS: |
Integrated GPS A-GPS (GPS/GLONASS/BeiDou/Galileo/QZSS) |
| Power: |
Line Voltage: 12.5V AC (Car battery power). Up to 35V (Trucks). Support for trucks with up to 35V |
| Expansion: |
2 x USB, Gigabit Ethernet and HAT |
| Wireless: |
WiFi: 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN
Bluetooth: Bluetooth 5.0 Bluetooth Low Energy (BLE) |
| Accelerometer: |
3-Axis accelerometer |
| Gyroscope: |
Built in 3-axis gyroscope |
| Automotive Interface: |
2X CAN-FD interface with up to 5Mbps Data rate with integrated CAN data filters |
| Input Slots: |
SIM Card: Nano SIM - (SIM subscription purchased separately) |
| Audio: |
Built-in speakers |
| Video Out: |
mini HDMI @ 1080p60 Video Output |
| Size and Weight: |
Size: L: 133,5mm H: 36,6mm W: 68,2mm
Weight: 170g |
| Certifications: |
EN 301 489-1 v2.2.0, EN55025:2008, EN 50498 and Directive 2004/104/EC, ISO 7637-2:2011, EN 301 489-3 V2.1.1, FCC 47 CFR Part 15, Class A:10–1–17 Edition |
Absolute Maximum
Operating Environment: |
Operating Temperature: -20° TO 70° C (-4° TO 158° F)
Relative Humidity: 0% TO 75% Noncondensing |
| Operating System: |
Raspbian OS with preconfigured AutoPi Core software |
| |
|
| |
