PicoScope 4000 Diagnostic Scopes

PicoScope 4000 oscilloscopes are designed to save you time and money by making it easier and quicker to diagnose faults on today’s modern vehicles.

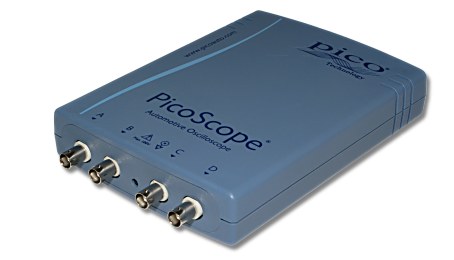

The PicoScope 4423 Automotive Oscilloscope is the most advanced PicoScope lab scope available and is included with our 4-channel automotive kit.

Faster sampling

The PicoScope 4423 can capture signals four times faster than any other PicoScope automotive scope – this makes it compatible with the new FlexRay standard and ensures your PicoScope oscilloscope will continue to be useful for a long time to come.

More memory

As well as capturing faster signals, the PicoScope 4423 also outperforms other scopes thanks to the 32 MB of ‘always on’ memory. With 64 times the memory of the previous generation of scopes, the PicoScope 4423 ensures that you can effortlessly capture every detail of the signal. Never again will you miss those hard-to-find intermittent faults.

Higher input range

The high ±100 V input range of the PicoScope 4423 eliminates the need for external attenuators for most vehicle tests.

Sorry – we couldn’t make it any easier to use

Thanks to the familiar graphical user interface, help files and reference library, using your PicoScope 4423 is as easy as ever. If you’re an existing PicoScope user you can just connect your scope and benefit immediately from the power and performance of your new PicoScope 4423. If you’ve never used a PicoScope oscilloscope before you can get started without needing to spend hours reading manuals.

The labscope for the new generation of vehicles

The fast sampling speeds, large memory and bandwidth of the PicoScope 4423 means that not only is it suitable for use on all current vehicles, but it will continue to be of use in diagnosing faults with the complex electrical and electronic systems that will be found on new and future generations of vehicles.

PicoScope 4423 Specifications

Oscilloscope Specifications
Bandwidth	20 MHz (10 MHz on ±50 mV range)
Channels	4
Vertical resolution	12 bits
Enhanced vertical resolution	16 bits
Accuracy	±1%
Sensitivity	10 mV/div to 20 V/div
Input ranges (full scale)	±50 mV to ±100 V in 11 ranges
Input characteristics	1 MΩ in parallel with 22 pF
Input type	Single-ended, BNC connector
Input coupling	Software selectable AC/DC
Overload protection	±200 V on single input
Maximum sampling rate (single shot) 1 or 2 channels in use 3 or 4 channels in use	80 MS/s 20 MS/s
Buffer memory	32 M samples shared between active channels
Waveform buffer	Up to 1000 waveforms
Timebase ranges	100 ns/div to 200 s/div

Triggers
Source	Any input channel
Basic triggers	Auto, repeat, single, none
Advanced triggers	Rising edge, falling edge, edge with hysteresis, pulse width, runt pulse, dropout, windowed
Maximum pre trigger delay	10 x “per division” timebase setting
Maximum post trigger delay	50 s

Spectrum Analyser
Bandwidth	20 MHz
Frequency range	DC to 20 MHz
Display modes	Magnitude, peak hold, average

PC Requirements
Minimum	Processor: Pentium II processor, or equivalent Memory: 64 MB (XP) / 512 MB (Vista) minimum Operating system: Microsoft Windows XP SP2 or Vista (32-bit only) Ports: USB 1.1 compliant port
Recommended	Processor: 2 GHz Pentium IV processor, or equivalent Memory: 256 MB (XP) / 1 GB (Vista) Operating system: Microsoft Windows XP SP2 or Vista (32-bit only) Ports: USB 2.0 compliant port

Environmental
Operating environment Temperature range	0 °C to 45 °C (15 °C to 40 °C for quoted accuracy)
Storage environment Temperature range Humidity	-20 to 60°C 5 to 95% RH, non-condensing

Physical Dimensions
Dimensions	200 x 140 x 35 mm (approx 7.9 x 5.5 x 1.4 in)
Weight	<500 g (approx 1.1 lb)

General
Additional hardware (supplied)	USB 2.0 cable, user manuals, software CD-ROM
PC interface	USB 2.0 (USB 1.1 compatible) - cable supplied
Power requirements	Powered from USB port
Compliance	FCC (EMC), CE (EMC and LVD), RoHS compliant
Total Satisfaction Guarantee	In the event that this product does not fully meet your requirements you can return it for an exchange or refund. To claim, the product must be returned in good condition within 14 days.
Warranty	2 years
