Piercing Clips (TA007)
The TA007 Insulation Piercing Test Clip set is ideally suited for automotive test and diagnosis. The piercing clips allow the user to provide the exact pressure needed to pierce the insulation of a wide range of wire types and sizes. The clips also feature a rotating banana jack that prevents the test lead from twisting and keeps the oscilloscope in the circuit while the wire is pierced, providing immediate confirmation that contact with the conductor has been made.
Limited inventory. This model has been replaced by the new TA513.
Buy the TA007 online:

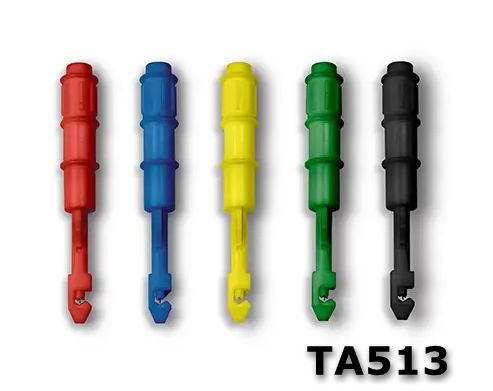

Piercing Clips (TA513)
[Replaces the TA007]
These easy-to-use probes are aimed at technicians in automotive repair workshops, wanting to quickly make a reliable connection to wiring when back-pinning is not permitted or recommended, and no suitable breakout connection is available.
Where insulation piercing is the preferred solution, these Pico probes offer outstanding performance minimising potential for damage to wiring and maintains that standard over an extended lifetime of more than 5,000 insertions. The insulation piercing probes are supplied as a set of five coloured probes allowing rapid visual identification of each connection to the coloured channels of the PicoScope.
Buy the TA513 online:
Multimeter Probes (TA001)
- Length - 115 mm
- Diameter - 20 mm
The multimeter probes offer a quick and easy solution, where a permanent connection is not required. The 4 mm socket in the handle of the probe connects straight into the TA000 test lead.
Coil-On-Plug Ignition Probe (PP338)
Designed to save you time, effort and money, the Pico Coil-On-Plug Ignition Probe is the fastest way to test both conventional and coil-on-plug secondary ignition systems.
The Pico Coil-On-Plug Ignition Probe eliminates the need for back-probing or any dismantling — to use the probe simply press it against the coil.
FirstLook™ Engine Diagnostic Sensor - TA014 (PP234)
The FirstLook Engine Diagnostic Sensor connects to the exhaust or vacuum side of the engine to be tested and offers a fast and accurate method to diagnose automobile engine problems such as burnt valves, bad injectors and other performance problems without major disassembly of the engine.
The FirstLook sensor is particularly suitable for use with a Pico automotive oscilloscope, but can also be used with most other modern lab scopes.
The FirstLook Engine Diagnostics Sensor kit comprises of the following items:-
- FirstLook Diagnostic Sensor
- 25 ft (7.6 m) cable - BNC to BNC cable
- 45 inch (1.1 m) cable - BNC to banana jack plugs
- BNC to BNC adaptor
- Vacuum line adaptor
Buy the Firstlook Sensor Kit (TA014):
|
