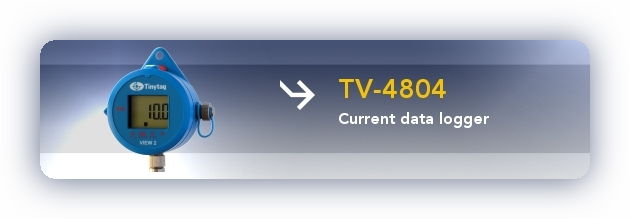

TV-4808 Current Logger

Current data logger with display, and with input lead

0 to 25mA DC

The TV-4804 monitors current from 0 to 25mA DC and can be connected to a variety of industry standard sensors enabling the logging of a wide range of process parameters. Like the rest of the View 2 range, this accurate and reliable logger has a display.

This unit is supplied with an input lead. (CAB-3239).

This logger requires Tinytag Explorer software and a USB cable (CAB-0007-USB).

Features

• Current logger
• Fast data offload
• LCD of current readings
• Splash-proof case (IP65)
• 30,000 reading capacity
• High reading resolution
• User-programmable alarms
• Optional audible alarm box
• Low battery monitor

 Product Datasheet

This is the easy to use Windows program needed to configure the logger and present the data. The Tinytag Explorer software licence allows unlimited users on one site.

Find out more about the Tinytag Explorer software

You have the option of purchasing calibration certificates with our loggers. Standard measurement points are 0 and 30°C for temperature, 20 and 80 % RH (at 25°C) unless specified otherwise. If you don't order calibration, we guarantee the accuracy figures on our datasheets at the point of purchase.

Find out more about Tinytag calibration
