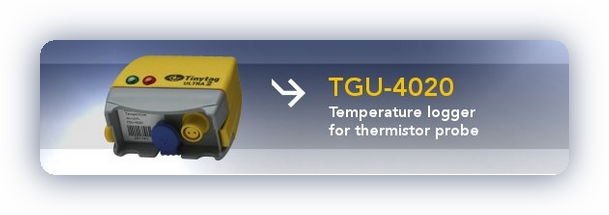

TGU-4020
External Temperature

Indoor temperature data logger for use with a thermistor probe

-40 to 125°C

Requires Thermistor Probe

The TGU-4020 monitors temperatures from -40 to 125°C using one of our range of thermistor probes, making it ideal for awkward to reach areas or where a fast response time is required. Like the rest of the Ultra 2 range, this accurate and reliable unit has a lightweight, splash-proof design and is primarily suited to indoor monitoring

This logger requires Tinytag Explorer software and a USB cable (CAB-0007-USB).

Features

• Temperature logger using probe
• 32,000 reading capacity
• Delayed start option
• Low battery monitor
• User-replaceable battery
• Splash-proof case (IP54)
• High reading resolution
• Fast data offload
• User-programmable alarms

 Product Datasheet

The thermistor probe range includes different designs, specifications and cables to meet varied demands. The range includes products for fast response temperature profiling; pipework monitoring; fridge and freezer monitoring; for use in composting and even armoured units for process applications. Many are waterproof and dustproof to IP68 making them suitable for damp, dirty or submerged locations.

This is the easy to use Windows program needed to configure the logger and present the data. The Tinytag Explorer software licence allows unlimited users on one site.

Find out more about the Tinytag Explorer software

You have the option of purchasing calibration certificates with our loggers. Standard measurement points are 0 and 30°C for temperature, 20 and 80 % RH (at 25°C) unless specified otherwise. If you don't order calibration, we guarantee the accuracy figures on our datasheets at the point of purchase.

Find out more about Tinytag calibration
