Test Leads

pico logo

A range of high-quality cables for interconnecting your Pico test equipment.

US Prices
CDN Prices

Privacy and Security





TA125-TA128 – Premium Test Leads



You’ve got the best oscilloscope, now get the best leads

Our premium leads are color-coded so that the color of the lead in the engine bay matches the color of the on-screen waveform in PicoScope Automotive – never again will you waste your time wondering which lead is which.

Our premium leads are fully screened to minimize noise pickup so you can have complete confidence in the signal that you are measuring.

The 5 m leads come with fixed 2.5 m ground extensions and are designed for working on larger vehicles.
  • 3 m or 5 m long
  • Fully shielded
  • Insulated BNC at scope connection
  • Shrouded/stacking banana plugs

TA125

TA125 - Premium Test Lead: BNC to 4 mm

  • Type: fixed ground
  • Colour: blue
  • Length: 3 meters (approximately 10 foot)

Buy TA125 Online:


TA126

TA126 - Premium Test Lead: BNC to 4 mm

  • Type: fixed ground
  • Colour: Red
  • Length: 3 meters (approximately 10 foot)

Buy TA126 Online:


TA127

TA127 - Premium Test Lead: BNC to 4 mm

  • Type: fixed ground
  • Colour: Green
  • Length: 3 meters (approximately 10 foot)

Buy TA127 Online:



TA128

TA128 - Premium Test Lead: BNC to 4 mm

  • Type: fixed ground
  • Colour: Yellow
  • Length: 3 meters (approximately 10 foot)

Buy TA128 Online:


PP718 - Premium Test Leads: Set of four leads 3 m (TA125 - TA128)

The 3 m leads come with fixed 2.5 m ground extensions and are designed for working on larger vehicles.
  • 3 m or 5 m long
  • Fully shielded
  • Insulated BNC at scope connection
  • Shrouded/stacking banana plugs

Buy PP718 Online:

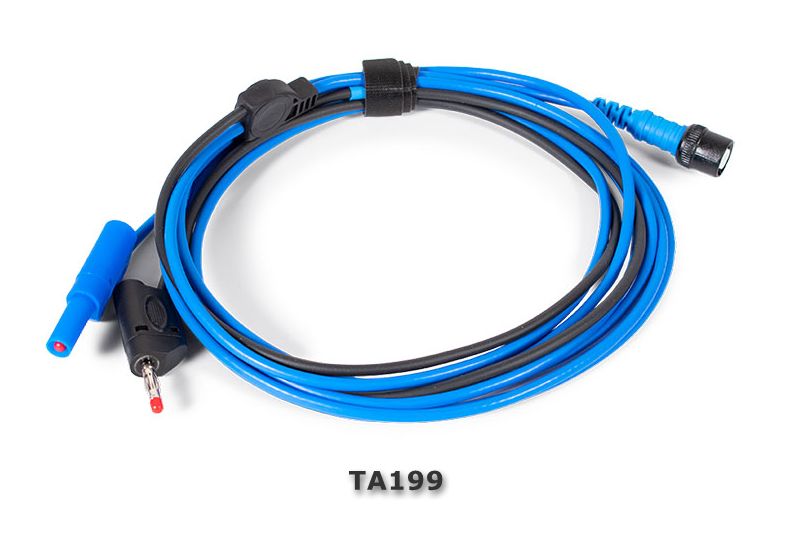

TA199 - Premium Test Lead: BNC to 4 mm, 5 m - Blue

  • 3 m or 5 m long
  • Fully shielded
  • Insulated BNC at scope connection
  • Shrouded/stacking banana plugs

Buy TA199 Online:


TA200 - Premium Test Lead: BNC to 4 mm, 5 m - Red

  • 3 m or 5 m long
  • Fully shielded
  • Insulated BNC at scope connection
  • Shrouded/stacking banana plugs

Buy TA200 Online:


TA201 - Premium Test Lead: BNC to 4 mm, 5 m - Green

  • 3 m or 5 m long
  • Fully shielded
  • Insulated BNC at scope connection
  • Shrouded/stacking banana plugs

Buy TA201 Online:


TA202 - Premium Test Lead: BNC to 4 mm, 5 m - Yellow

  • 3 m or 5 m long
  • Fully shielded
  • Insulated BNC at scope connection
  • Shrouded/stacking banana plugs

Buy TA202 Online:


TA203 - Premium Test Lead: BNC to 4 mm, 5 m - Black

  • 3 m or 5 m long
  • Fully shielded
  • Insulated BNC at scope connection
  • Shrouded/stacking banana plugs

Buy TA203 Online:


PP941 - Premium Test Leads: Set of four color leads 5 m (TA199 - TA202)


The 5 m leads come with fixed 2.5 m ground extensions and are designed for working on larger vehicles.
  • 3 m or 5 m long
  • Fully shielded
  • Insulated BNC at scope connection
  • Shrouded/stacking banana plugs

Buy PP941 Online:


TA155 Interface Cable (USB 3.0)

TA155 - High Quality USB 3.0 Interface Cable

Buy TA155 Online:


TA330 - Keyless entry carrier signal detector

Buy TA330 Online:


TA329 - Ultrasonic parking sensor detector

Buy TA329 Online:


MI106 - 1.8 m USB 2.0 cable for PicoScope

Buy MI106 Online:


MI121 - 4.5 m USB 2.0 cable for PicoScope

Buy MI121 Online:


TA130 - Insulated BNC to insulated BNC 5 m

Buy TA130 Online:


TA303 - 4.5 m USB 3.1 Gen 1 cable for PicoScope

Buy TA303 Online:


TA197 - 10:1 Attenuator

With high bandwidth and fault-protection, the 10:1 attenuator has been designed to allow fuel injector and primary ignition waveforms to be measured using PicoScope oscilloscopes.

read more.....

Buy TA197 Online:


attenuator

20:1 Attenuator (PP198) Discontinued***ONLY 1 LEFT IN STOCK!!***

The PP198 has been designed to allow fuel injector and primary ignition waveforms to be measured using PicoScope oscilloscope products.
The PP198 is a passive 20:1 attenuator. This means that a 20V signal at its input will appear as a 1V signal on the output. As the signal is attenuated, the PP198 allows voltages of up to 300 V to be measured.

Please note this attenuator should not be used for any high voltage measurements other than fuel injectors and primary ignition.

More on the PP198 attenuator ->

Buy PP198 Online:

Please call us to order


PA147 - 6-pocket roll-up pouch

Buy PA147 Online:



TA375 - Passive scope probe 100 MHz


This probe has replace the older MI007 in all our kits and which includes improvements to enhance durability, ease of use and performance, such as:
  • Redesigned probe tip allows removal and refitting of replacement tips
  • Replacement TA385 spring tips and TA384 rigid tips are available separately
  • Redesigned probe hook accessory fitting
  • Upgraded high durability probe cable

Buy TA375 Online:


TA472 - Black Premium Test Lead: BNC to 4mm, 3m


The 3 m leads come with fixed 1.5 m ground extensions and are designed for working on most Cars and small vans.

All Pico premium test leads are
  • Fully shielded for the complete length of the signal cable
  • Color coded BNCs for the scope connections
  • Shrouded/stacking banana plugs

Buy TA472Online:


automotive test lead

Automotive Test Leads (TA000) *discontinued* ONLY 3 LEFT IN STOCK!

The TA000 test lead has been custom made for automotive use with a Pico automotive oscilloscope. Its length (3 meters / approx 10 ft) allows the oscilloscope to be placed on the work bench away from the car being tested / repaired. A wide range of probes, clips and gators can be plugged into the 4 mm connectors at the end of the cable. The cable is fully screened to reduce noise pickup.

Buy TA000 Online:

PLEASE CALL US TO ORDER


Also available is the TA020 automotive test lead. *discontinued* ONLY 1 LEFT IN STOCK!

The TA020 is a 5 meter (approx 16 ft) version of the TA000.

Buy TA020 Online:

PLEASE CALL US TO ORDER


PQ070 Premium Test Lead Set

PQ070 Premium Test Lead Set (SKU in Kit is TA324)

This kit replaces the old PP327

Buy the PQ070 Online:
